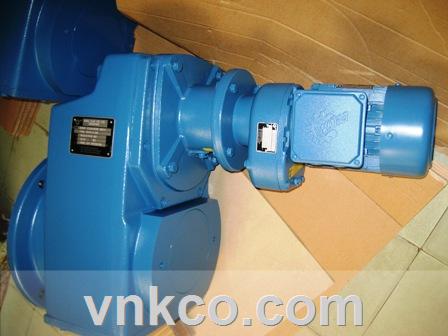

Clincher Shaft Mount with IEC adapter
Type SK6382VF-IEC90-SK20F-80S/4
Reduction 24,300
Output speed 0.05 1/min at n1 = 1400 1/min
Output torque 5880 Nm max. at n1 = 1400 1/min
Output shaft Diameter = 75 mm. length = 140 mm
Mounting position H5/M4(see figure)
Flange Diameter = 400 mm
Approximate weight 187 kg without options
Lubricant Mineral oil ISO VG220, approx. 18 litres
Top coat RAL 7031 bluegrey dull
Gear design B5 flange mount, solid shaft (VF)
