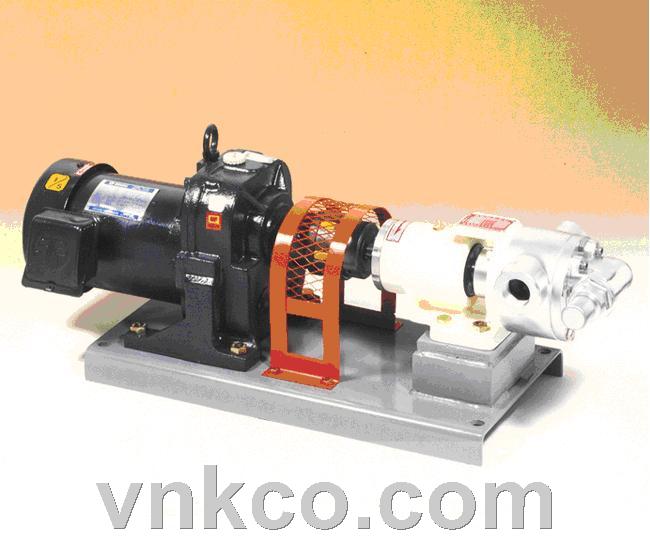

Internal Gear Pump ,SAE AN PUMP Brand ,included relief valve
*Model: SARA 25
Flow max: 1.8 m3/h (at 960 Rpm – max viscosity is 50,000 cst )
Discharge pressure max :14 Bar (relief valve can adjust pressure according to user’s request)
Port size : 1“ NPT
Temperature max : 350o C
Construction :
Material of pump : SS 304
Seal type : packing
Material of packing : Teflon
Relief valve : Inox
Pump head Origin :
Included motor 2.2 Kw ( 3 HP ) Nord Drivesystems ,model :
Type SK11E-100L/4
Motor power 2.2 kW
Output speed 1440/935 RPM
Output torque 22 Nm
Service factor 2.2
Reduction 1.54
Mode of operation S1
Insulation class F
Enclosure: IP 55
Supply 230/400 V, 50 Hz
Rated current: (400 V) 5.22 A
Output shaft Diameter = 20 mm. length = 40 mm
Mounting position B3/M1(see figure)
Terminal box position 1
Cable entry position I
Approximate weight 24 kg without options
Lubricant Mineral oil ISO VG220, approx. 0.25 litres
Top coat RAL 7031 bluegrey dull
Gear design foot mounted (B3)
– flexible coupling – All pump head and motor are mounted on base plate
Three phase motors origin :
